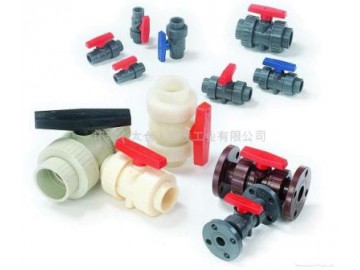

規格:
| 型號 | 尺寸 | 規格 | 材質 | 墊座 | O環 | 接口 |
| VP-640 | 1/2"~4" | ANSI,JIS,DIN,BS | PVC | PTFE | EPDM,FPM | Socket, Threaded, Flanged |
| VP-641 | 1/2"~4" | ANSI,JIS,DIN,BS | CPVC | PTFE | EPDM,FPM | Socket, Threaded, Flanged |
| VP-643 | 1/2"~4" | ANSI,JIS,DIN,BS | PVDF | PTFE | EPDM,FPM | Socket, Threaded, Flanged |
| VP-644 | 1/2"~4" | ANSI,JIS,DIN,BS | PP | PTFE | EPDM,FPM | Socket, Threaded, Flanged |
| VP-645 | 1/2"~4" | ANSI,JIS,DIN,BS | ABS | PTFE | EPDM,FPM | Socket, Threaded, Flanged |
|
| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 2 | 中心O環(STEM O-RING) | EPDM,FPM | 2 |
| 3 | 中心柱(STEM) | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 4 | 球(BALL) | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 5 | 墊座(SEAT SEAL) | PTFE | 2 |
| 6 | 內O環(CARRIER O-RING) | EPDM,FPM | 1 |
| 7 | 內(SEAL CARRIER) | UPVC,CPVC,PP,PVDF,ABS | 1 |
| 8 | 由令O環(union O-RING) | EPDM,FPM | 2 |
| 9 | 外(END CONNECTOR) | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 10 | 螺帽(union NUT) | UPVC,CPVC,PP,PVDF,ABS | 2 |
| 11 | 把手(HANDLE) | ABS,PP+GF,PP | 1 |
| 12 | 本體埋銅(INSERTED NUT) | C3602 | 2.4 |
| 15 | 本體O環(BODY O-RING) | EPDM,FPM | 2 |
| SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | |
| (15mm) | (20mm) | (25mm) | (32mm) | (40mm) | (50mm) | (65mm) | (80mm) | (100mm) | ||
| JIS | d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 |
| d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.77 | |
| I | 22.2 | 25.4 | 28.6 | 31.8 | 34.9 | 38.1 | 61 | 63 | 69 | |
| ANSI | d1(UPVC) | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 |
| d1(CPVC) | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.28 | 114.73 | |
| d2(UPVC) | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | |
| d2(CPVC) | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.67 | 114.04 | |
| I | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 | |
| DIN | d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.35 | 90.35 | 110.6 |
| d2 | 19.9 | 24.9 | 31.9 | 39.9 | 49.9 | 62.9 | 74.9 | 89.9 | 109.9 | |
| I | 16 | 19 | 22 | 26 | 31 | 38 | 44 | 51 | 61 | |
| BS | d1 | 21.7 | 27.15 | 33.95 | 42.65 | 48.65 | 60.75 | 75.75 | 89.35 | 114.95 |
| d2 | 21 | 26.35 | 33.15 | 41.85 | 47.85 | 59.95 | 74.95 | 88.45 | 113.65 | |
| I | 22.22 | 25.4 | 28.58 | 31.75 | 34.93 | 38.1 | 44.45 | 47.63 | 57.15 | |
| thd./in | PT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | |
| ?D | 46.5 | 55 | 66 | 82 | 98 | 120 | 140 | 163 | 225 | |
| ?D1 | 31 | 37 | 45 | 54 | 65 | 79 | 92 | 108 | 146 | |
| ?d | 13 | 18 | 23 | 30 | 38 | 48 | 61 | 69 | 99 | |
| L | 114 | 135 | 149 | 168 | 175 | 208 | 275 | 304 | 332 | |
| L1 | 60 | 73 | 79 | 88 | 95 | 114 | 138 | 158 | 176 | |
| L2 | 78 | 92 | 100 | 110 | 121 | 147 | 180 | 224 | 278 | |
| H1 | 47 | 57 | 66 | 74 | 87 | 106 | 116 | 130 | 178 | |
| H2 | 21 | 26 | 33 | 39 | 41 | 53 | - | - | - | |
| S | 8 | 8 | 11 | 11 | 11 | 15 | - | - | - | |
| F | 30 | 33 | 40 | 47 | 52 | 70 | - | - | - | |
| M | M5 | M6 | M6 | M8 | M8 | M8 | - | - | - | |
(Unit : mm)
