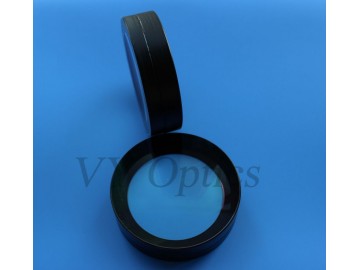

optical Achromatic Lens
點擊圖片查看大圖
產品/服務: 瀏覽次數:455Achromatic Lens
型 號: VY0014
品 牌: VY
單 價: 0.01元/piece
起訂量: 100 piece
供貨總量: 100000 piece
發貨期限: 自買家付款之日起 3 天內發貨
更新日期: 2014-07-03  有效期至:長期有效
聯 系 人: ( 登錄可見 )
公司電話: ( 登錄可見 )
即時通訊: ( 登錄可見 )


«上一個產品     下一個產品»
產品屬性
 產品型號:  VY0014
 產品規格:
 產品品牌:  VY
詳細信息

Achromatic Lenses/cemented lenses/glued lenses/doulets are achromatic consists of a positive low-index Crown Glass lens element cemented to a negative high-index Flint Glass lens element. The elements are chosen so as to cancel chromatic aberration at two well-separated wavelengths, usually in the blue and red region of the spectrum. Focal length is constant at those two wavelengths and focal length shifts are virtually eliminated across the visible wavelengths. One frequent use is to achieve diffraction limited focusing of a laser beam. Negative Achromats are typically used when there is a need to eliminate chromatic aberration. In addition to reducing chromatic aberration at the design wavelengths, spherical aberration and coma are greatly reduced.
VY Optics Photoelectric Technology Co., Ltd. Supply all kinds of achromatic lens as per your requested.
Specification of our achromatic lens as follow:
*Material: BK7 and ZF2(or according to your request)
*Dia.: +0/-0.05
*Center thickness tolerance: +/-0.1
*Surface quality: 60-40 Scrath/Dig
*Surface figure: 0.5-0.2
*Centration < 3arc min
*Chamfer: 0.1-0.25*45 degrees
*Design wavelength: 486.1mm, 587.6mm, 656.3mm
(the parameter is demision of nomal lens, so specification will be changed according to different demision and material)
